테스트를 위해 뷰포트에 놓왔던 BP_Bullet는 제거합니다.

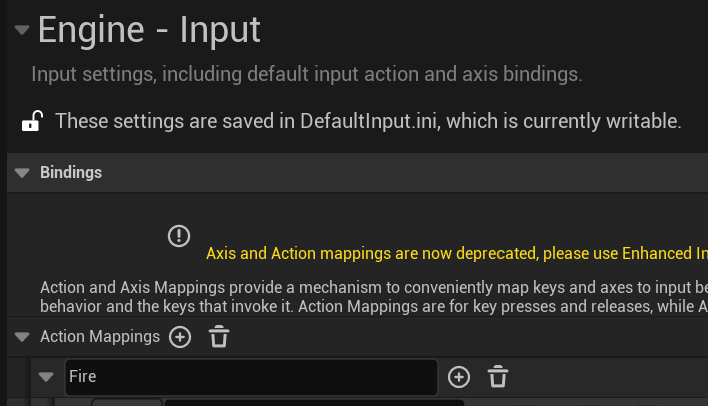

총알 발사를 위해 프로젝트 Input탭의 바인딩에 Action을 추가합니다.
총알 발사 위치를 설정하기 위해 PlayerPawn헤더파일에 UArrowComponent 포인터변수를 추가합니다.
총알블루프린트는 레벨에 배치되지 않았지만 실시간으로 생성되므로 TSubclassOf<>라는 자료형으로 선언해야 합니다.
UPROPERTY(EditAnywhere)
class UArrowComponent* firePosition;
UPROPERTY(EditAnywhere)
TSubclassOf<class ABullet> bulletFactory;
생성자에 firePosition객체를 얻어오는 코드를 추가하고 boxComp에 붙여줍니다.
ABullet::ABullet()
{
// Set this actor to call Tick() every frame. You can turn this off to improve performance if you don't need it.
PrimaryActorTick.bCanEverTick = true;
boxComp = CreateDefaultSubobject<UBoxComponent>(TEXT("box Collider"));
SetRootComponent(boxComp);
boxComp->SetBoxExtent(FVector(50, 50, 50));
boxComp->SetWorldScale3D(FVector(0.75f, 0.25f, 1.0f));
meshComp = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("StaticMeshComponent"));
meshComp->SetupAttachment(boxComp);
firePosition = CreateDefaultSubobject<UArrowComponent>(TEXT("Fire Position"));
firePosition->SetupAttachment(boxComp);
}

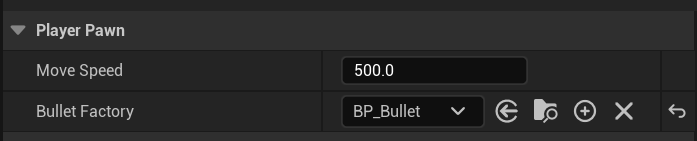

빌드후 BP_PlayerPawn을 클릭해서 bulletFactory에 BP_Bullet을 할당합니다.
뷰포트에서 FirePosition을 선택하고 총구방향이 위로 향하도록 Rotation Y를 90로 하고 큐브 위쪽 가운데로 위치를 조정합니다.
이제 마우스 왼쪽 버튼을 누르면 실행할 함수를 만들어 봅니다.playerPawn.h에 Fire()를 추가합니다.
private:
float h;
float v;
void MoveHorizontal(float value);
void MoveVertical(float value);
// 총알의 발사 입력 처리함수
void Fire();
};
playerPawn.cpp에 함수를 구현해줍니다.
void APlayerPawn::Fire()
{
ABullet* bullet = GetWorld()->SpawnActor<ABullet>(
bulletFactory, firePosition->GetComponentLocation(), firePosition->GetComponentRotation());
}
bulletFactory는 BP_Bullet이므로 이 블루프린트를 해당위치 회전으로 생성해줍니다. Bullet헤드파일이 include되어야합니다.
#include "PlayerPawn.h"
#include "Components/BoxComponent.h"
#include "Components/StaticMeshComponent.h"
#include "Components/ArrowComponent.h"
#include "Bullet.h"
BindAction()을 추가해 마우스좌클릭을 Fire()함수와 연결해 줍니다. BindAxis와 다른게 Input Event를 추가해 줘야 합니다.
void APlayerPawn::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
Super::SetupPlayerInputComponent(PlayerInputComponent);
PlayerInputComponent->BindAxis("Horizontal", this, &APlayerPawn::MoveHorizontal);
PlayerInputComponent->BindAxis("Vertical", this, &APlayerPawn::MoveVertical);
PlayerInputComponent->BindAction("Fire",IE_Pressed, this, &APlayerPawn::Fire);
}
